Series Introduction

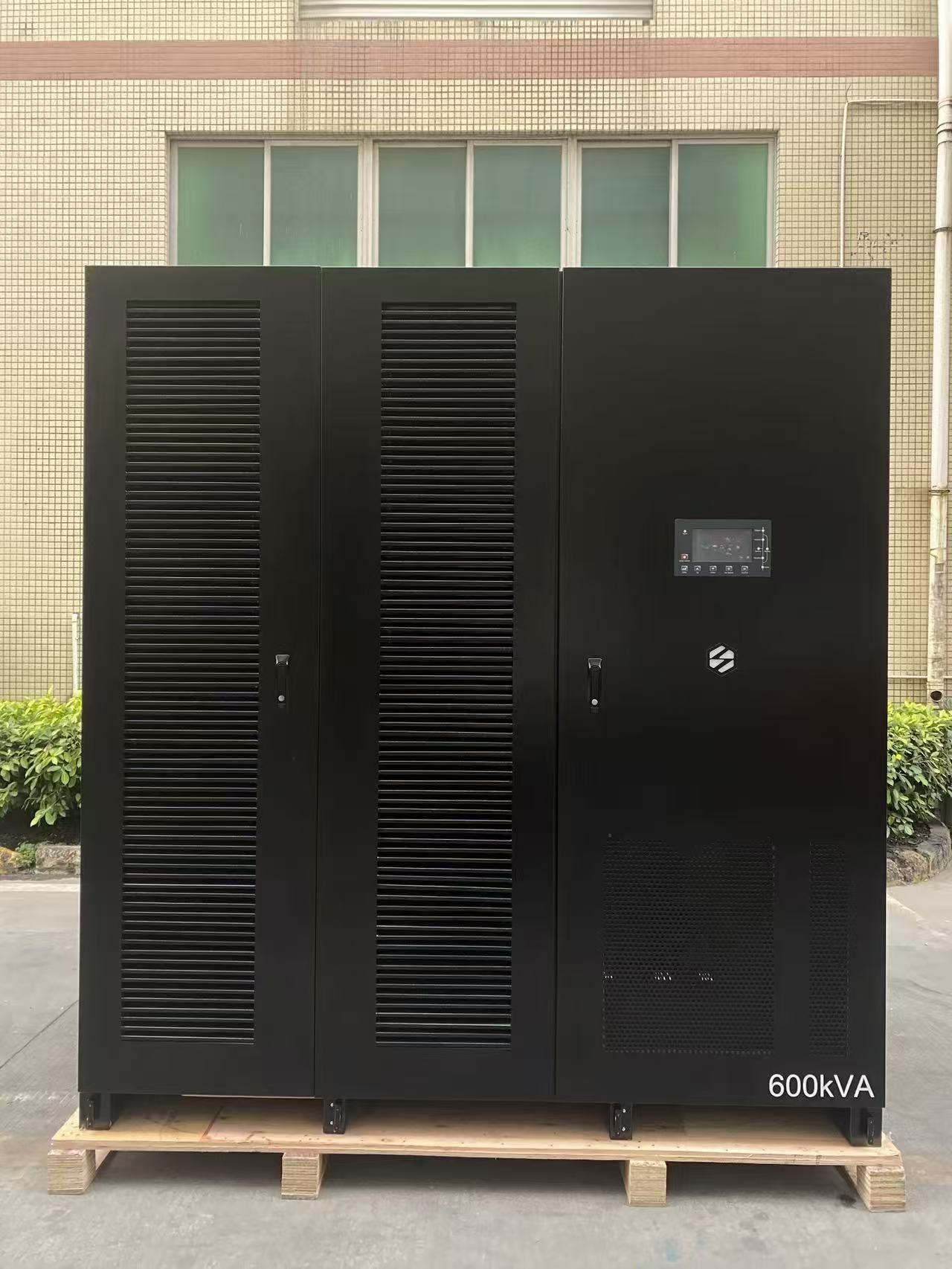

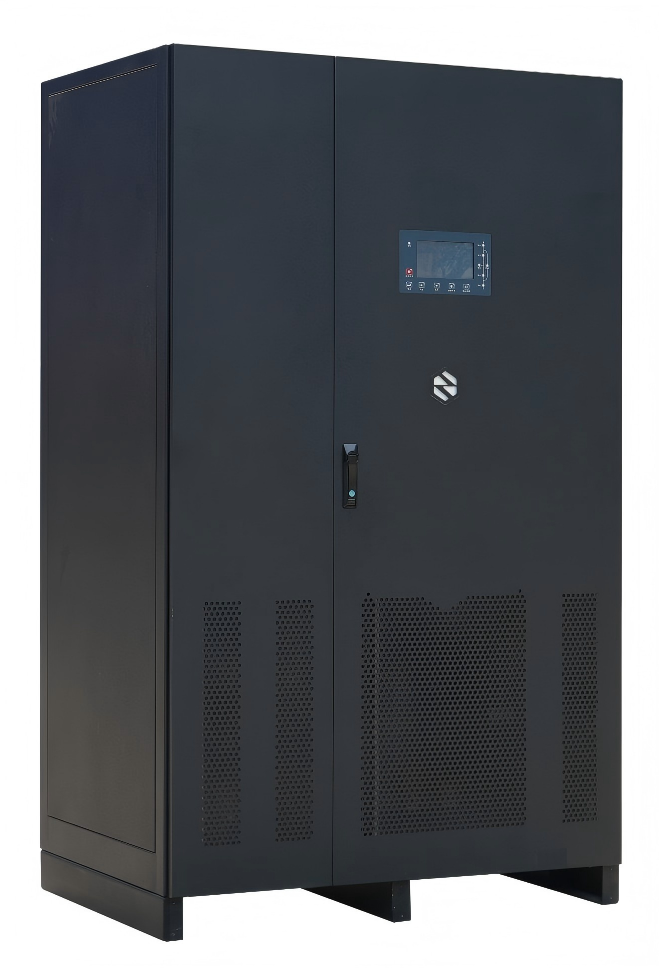

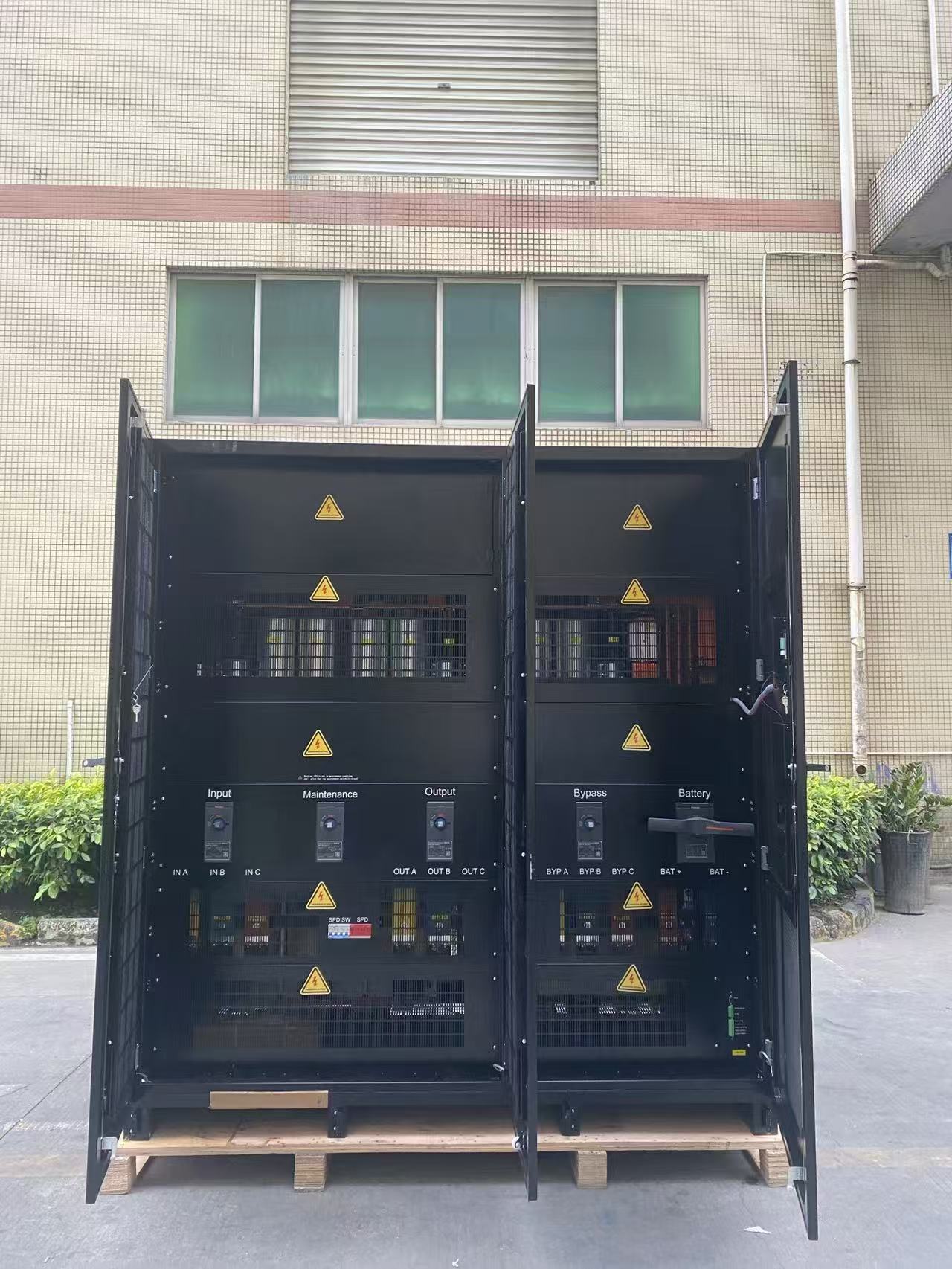

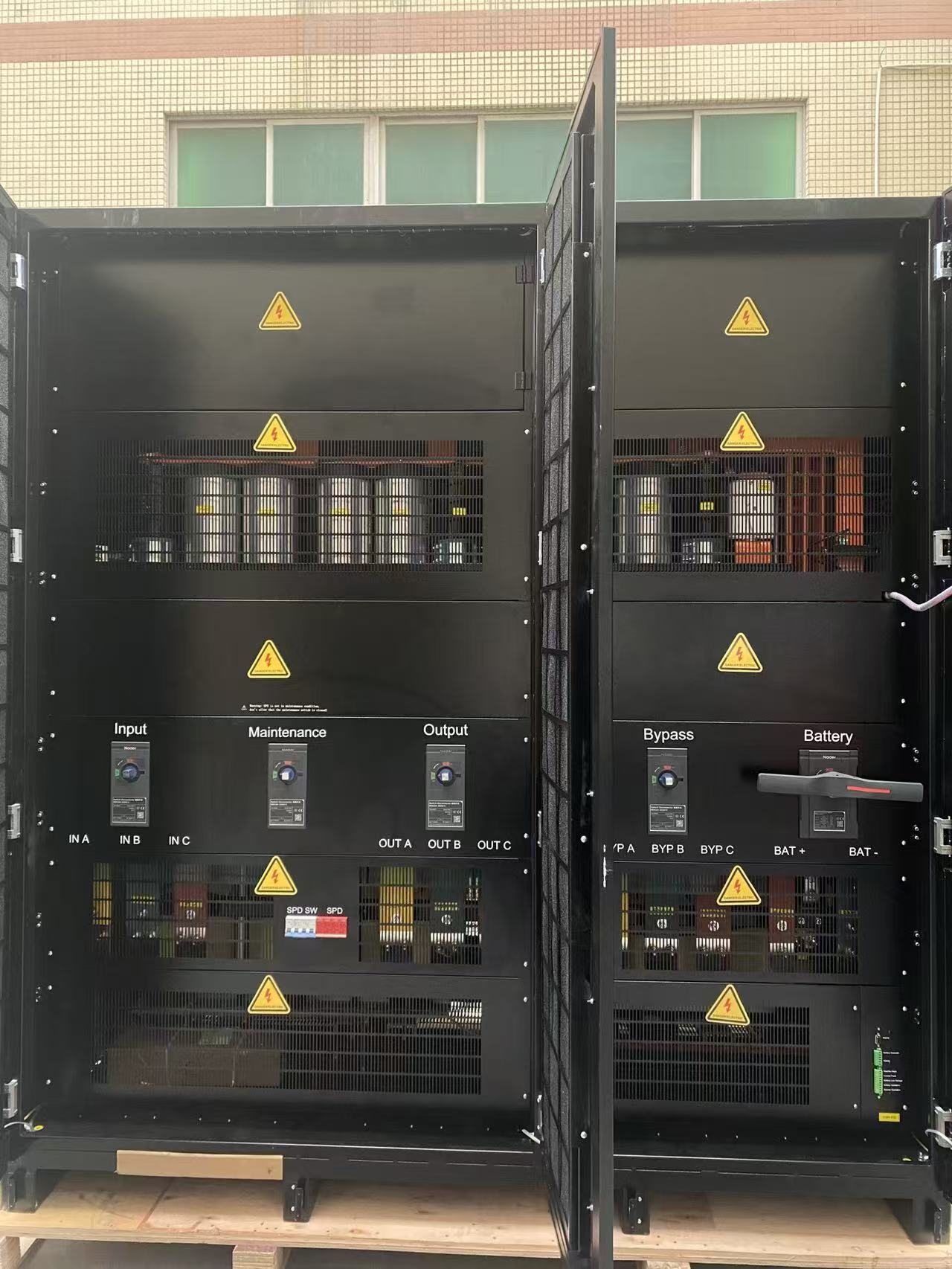

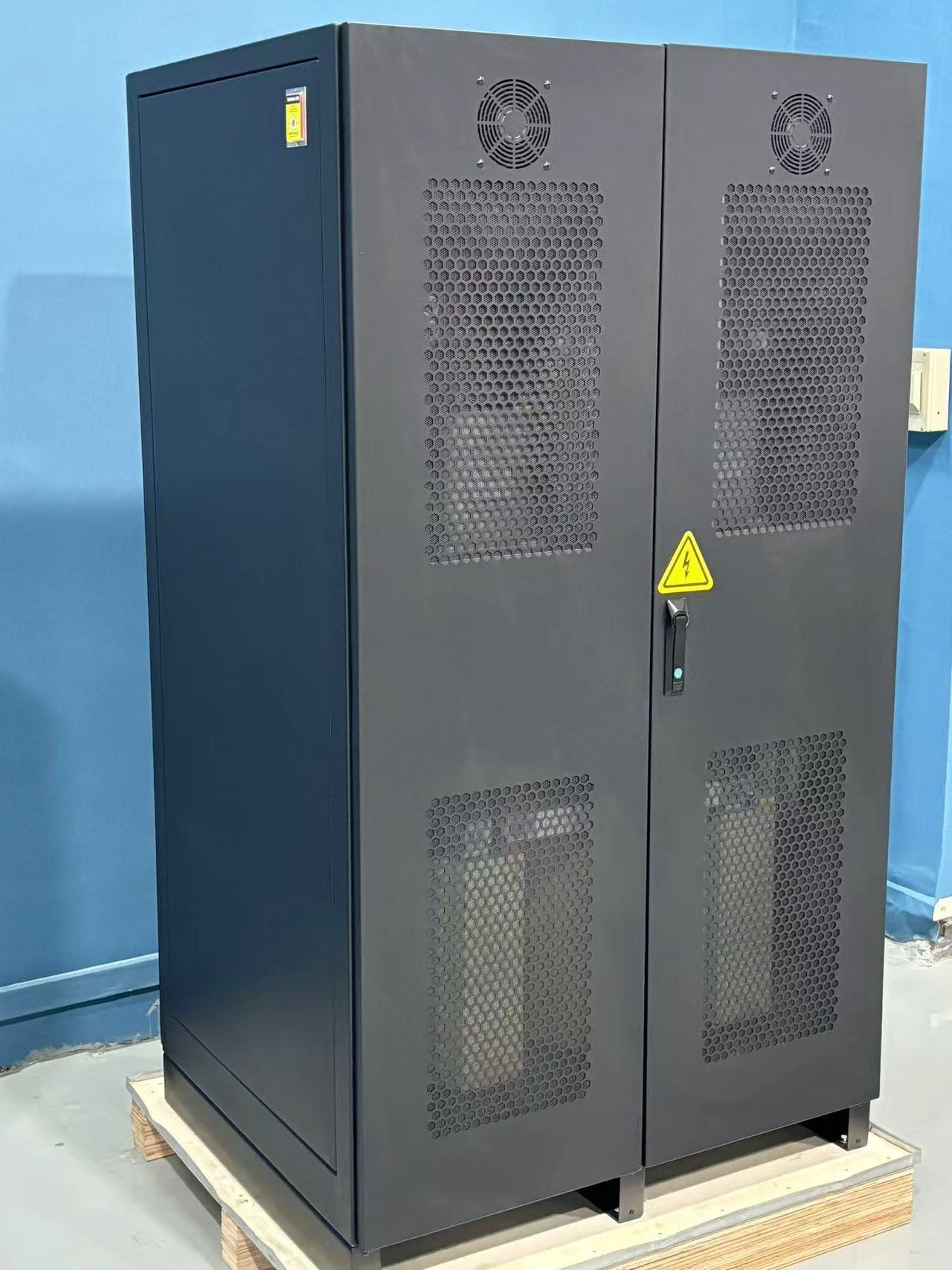

The CP33 series of industrial-grade UPS units features three input and three output lines, with single-unit capacities ranging from 10KVA to 1200KVA. This series utilizes 6th generation IGBT power devices and static switches, employing the latest dual-core DSP for fully digital control. Adopting a high-standard industrial design, it comes standard with an output isolation transformer. Internal electrical connections utilize a conductive alloy encapsulated in low-smoke halogen-free resin, capable of withstanding 20,000 volts of high voltage, providing excellent heat dissipation and significantly reducing the power supply's size and weight. It boasts comprehensive detection and protection functions, user-friendly communication and monitoring features, a standard RS232 interface, and optional SNMP card, RS485, and Wi-Fi interfaces for convenient centralized and remote monitoring. The operating interface uses an LED+LCD color touchscreen display, allowing users to intuitively understand the UPS's operating status and easily operate it.
|
MODEL |
CP33400K |
CP33500K |
CP33600K |
CP33800K |
CP331000K |
CP331200K |
|
|
Capacity |
320KW |
400KW |
480KW |
640KW |
800KW |
960KW |
|
|
Main road Input |
Input |
Three-phase four-wire + ground wire |
|||||
|
Rated voltage |
380/480Vac |
||||||
|
Voltage range |
380/480Vac±25% |
||||||
|
Rated frequency |
50Hz/60HZ |
||||||
|
Frequency range |
50Hz/60HZ±10% |
||||||
|
Power factor |
≥0.99 |
||||||
|
Current harmonics |
＜3%(100% Nonlinear load) |
||||||
|
Battery Input |
Battery Type |
2V/12VSealed Maintenance-Free Lead-Acid Batteries |
|||||
|
Battery pack voltage (DC) |
Default 768V (adjustable from 62 to 66V) |
||||||
|
Charging power |
6A(Maximum customizable 12A) |
||||||
|
Exchange Output |
Output |
Three-phase four-wire + ground wire |
|||||
|
Output voltage |
380/480Vac ±1% |
||||||
|
Output frequency |
Mains power synchronization: 50/60 ± 0.5%; Inverter mode: 50/60 ± 0.1% |
||||||
|
Power factor |
0.8 |
||||||
|
Parallel current imbalance |
＜5% |
||||||
|
Dynamic voltage transients |
≤2% |
||||||
|
Dynamic transients Recovery time |
≤20ms |
||||||
|
THD |
≤2%（Linear load）；≤3%（Nonlinear load） |
||||||
|
Overload capacity |
≤125%，Switch to a bypass after 10 minutes；150% Switch to a bypass after 1 minute； >150%,Switch to a bypass after 200ms |
||||||
|
Peak ratio |
3:1 |
||||||
|
Conversion time |
Mains power switching to battery mode 0ms；Battery bypass mode ≤2ms |
||||||
|
System Features |
Maximum efficiency |
≥98% |
|||||
|
IP |
IP20 |
||||||
|
display |
LCD+LED+77-inch color touchscreen |
||||||
|
Communication and monitoring functions |
Standard configuration: RS232, dry contacts, battery cold start function, dust filter; Optional configuration: RS485, SNMP card, AS400 card, parallel operation module, surge protection module |
||||||
|
Noise at 1m |
≤65dB |
||||||
|
Environmental conditions |
Operating temperature |
-10～45℃（Customization available for special environments |
|||||
|
Storage temperature |
-15～45℃（Customization available for special environments） |
||||||
|
Operating humidity |
0～95（No condensation） |
||||||
|
Altitude |
≤4000m No reduction，>4000m The rate decreases by 1% for every 100m increase in altitude. |
||||||
|
SIZE：LxWxH (mm) |
2100×1100×2000 |
(2100×1100×2000)×2 |
|||||
